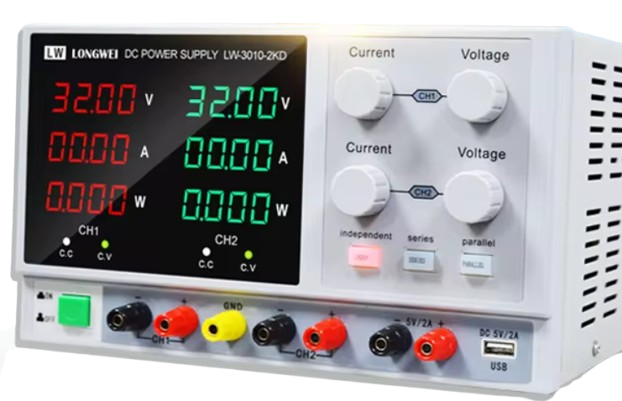

LONGWEI 30V 10A DUAL DIGITAL DC POWER SUPPLY VARIABLE WITH 5V 2A USB Model LW-3010-2KD

₨ 105,000

Dual Adjustable Outputs + Fixed 5V/2A Output: Features two adjustable outputs and one fixed output for versatile power options.
High-Precision LED Display: Three sets of 4-digit LED indicators for current, voltage, and power for clear visibility.
Multiple Operating Modes: Switch seamlessly between voltage regulation and constant current modes.
Multiple Protection Functions: over-current protection (OCP), over-temperature protection (OTP), and over-power protection (OPP).
Intelligent Cooling Fan: Efficient heat dissipation extends fan life and reduces noise.

Category: POWER SUPPLIES Tags: 10A, 2A, 30V, DUAL DIGITAL DC POWER SUPPLY, LONGWEI, LW-3010-2KD, USB, VARIABLE WITH 5V Brand: LONGWEI

Description
Reviews (0)

Description

Technical Data

Model	TPR-3010-2KD
Max Voltage	2 × 30V
Max Current	2 × 10A
Series/Parallel Use	Yes/Yes
Adjust Type	Stepless Knob
Input Power	AC 220V 50Hz±2Hz / AC 110V 60Hz±2Hz
Constant Voltage Mode	Current effect	≤ 0.01%+1mV
	Load effect	≤ 0.01%+5mV
	Ripples and noises	≤ 1.0mV r.m.s.
Constant Current Mode	Current effect	≤ 0.2%+1mA
	Load effect	≤ 0.2%+5mA
	Ripples and noises	≤ 6mA r.m.s.
Regular Output	Nominal output voltage	5V±2.5%
	Nominal output current	3A
	Current effect	≤ 0.01%+1mV
	Load effect	≤ 1%
	Ripples and noises	≤ 0.5mV r.m.s
Precision	Voltmeter	±1%±1 figures
	Ammeter	±2%±1 figures
Protection	OVP,OCP,OLP,OTP
Operating Temperature	0℃ to 40℃
Relative Humidity	< 90%
Storage Temperature	-20℃ to 80℃
Relative Humidity	< 80%
Overall dimensions	315×260×160 mm
Weight	5.5kg
