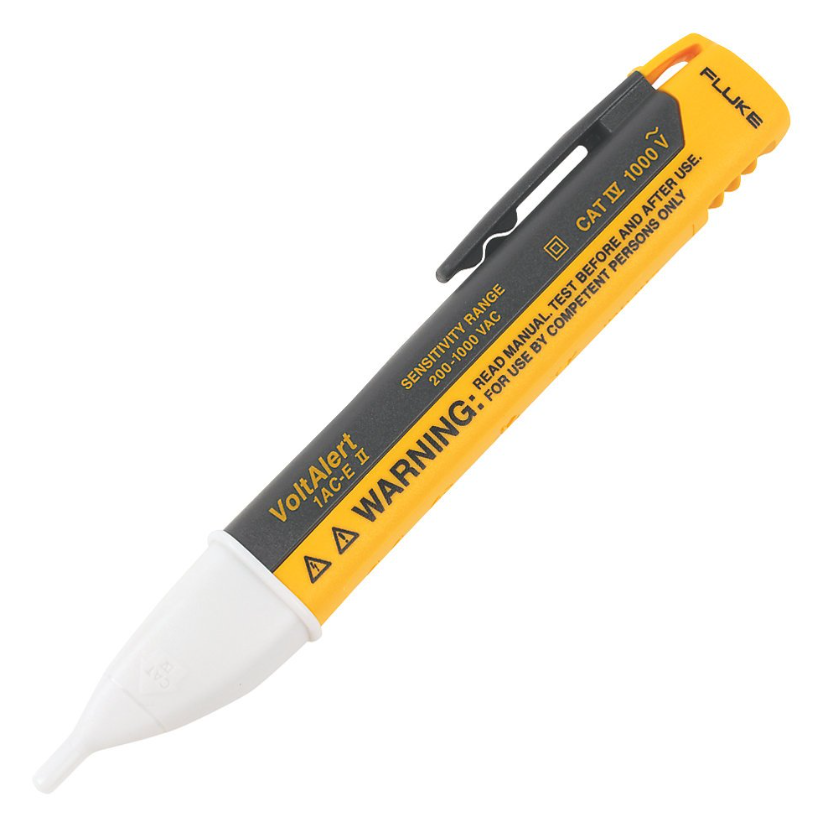

Non-Contact Voltage Tester FLUKE MODEL NO 1AC-c2ll

₨ 12,500

The portable 1AC II non-contact voltage tester from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present.

Be aware of voltage easily – the tip glows red and a beeper sounds when voltage is detected
Continuous self-test so you always know it’s working
Voltage detection range for wide application use – 90 V to 1000 V AC or 200 V to 1000 V AC
Audible/Silent mode for added convenience

Description

Technical Data

Operating Principles	Senses the steady state electrostatic ﬁeld produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.
Voltage sensing ranges	Nominally, 90 V AC to 1000 V AC
Detector tip style	Flat-tip
Light source	One high intensity red LED
Agency Approvals	‍‍‍
Safety	IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V
EMC	IEC 61326-1: Portable
IP Rating	IP 40
Operating Temperature	-10°C to 50°C (-14°F to 122°F)
Operating Humidity Ranges	0% to 95% (0°C to 30°C)
	0% to 75% (30°C to 40°C)
	0% to 45% (40 to 55°C)
Operating Altitude	3000 m
Cleaning	Clean with damp cloth
Batteries	2 AAA alkaline batteries included
Battery Life	Typical battery life of greater than 1 year
