Description
Technical Data
| General information | ||

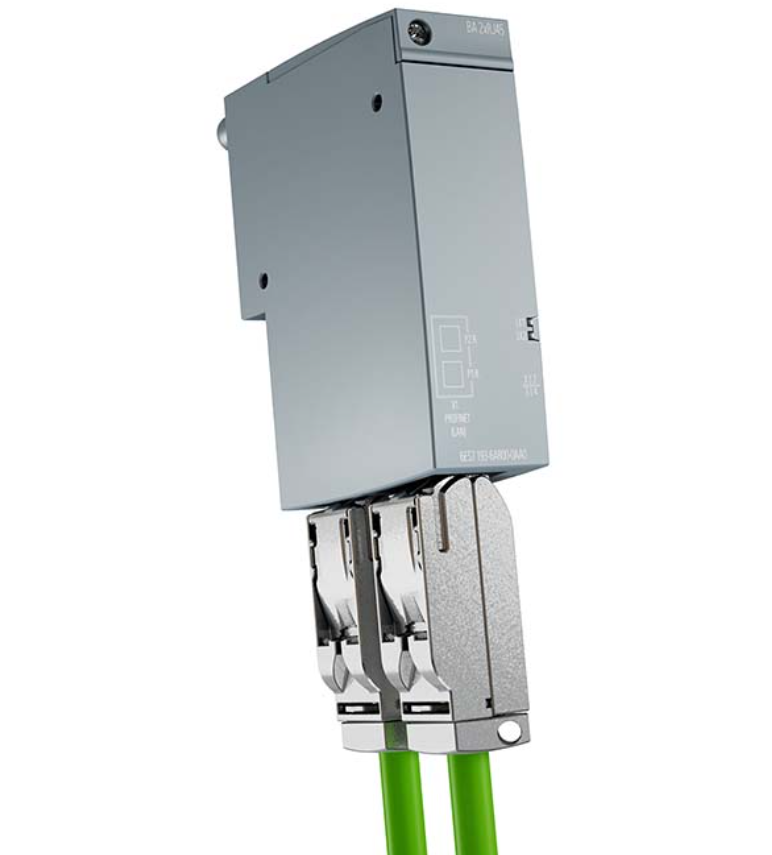

| Product type designation | BA 2x RJ45 | |
| Interfaces | ||
| Number of PROFINET interfaces | 1; 2 ports (switch) 2x RJ45 | |
| Supports protocol for PROFINET IO | ||
| ● Number of RJ45 ports | 2 | |
| Cable length | ||
| — Cu conductors | 100 m | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| ● horizontal installation, min. | -30 °C | |
| ● horizontal installation, max. | 60 °C | |
| ● vertical installation, min. | -30 °C | |
| ● vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| ● Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual | |
| Dimensions | ||
| Width | 20 mm | |
| Height | 69.5 mm | |
| Depth | 59 mm | |
| Weights | ||
| Weight, approx. | 46 g | |
