| General information |
| Product type designation |

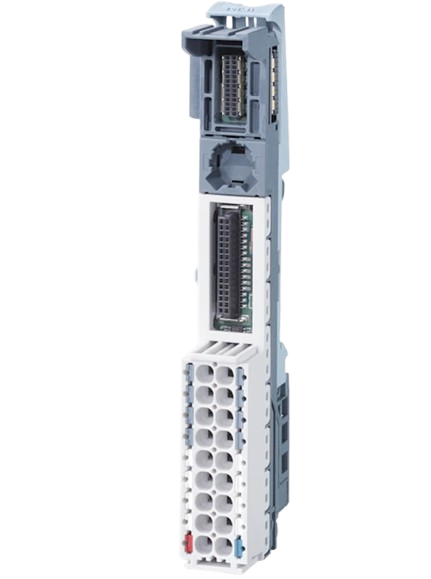

BU type A1 |
| HW Functional Standard |
Not lower than FS10 |
| Supply voltage |
| Nominal value (DC) |
24 V |
| External fuse protection for power lines |
Yes; Modular circuit breaker for line protection 24V/10A with tripping characteristic, type B or C |
| Maximum permissible load |
| for bus P1 and P2, max. |
10 A |
| for technological clamps, max. |
2 A |
| Hardware configuration |
| Temperature sensor |
Yes |
| Formation of a potential group |
| ● New potential group |
Yes |
| ● Potential group continued on the left |
No |
| Nests |
| ● Number of nests |
1; Type A1 |
| Galvanic isolation |
| between potential blocks |
Yes |
| Insulation |
| Insulation tested by |
707 VDC (type test) |
| Standards, approvals, certificates |
| Environmental impact |
| ● environmental product declaration |
Yes |
| Greenhouse effect potential |
| — greenhouse effect potential (total) [CO2 eq.] |
0.873 kg |
| — greenhouse effect potential (during production) [CO2 eq.] |
0.866 kg |
| — greenhouse effect potential (during operation) [CO2 eq.] |
0 kg |
| — greenhouse effect potential (at end of life) [CO2 eq.] |
-0.0011 kg |
| Environmental conditions |
| Ambient temperature during operation |
| ● horizontal wall mounting, min. |
-30 °C |
| ● horizontal wall mounting, max. |
60 °C |
| ● vertical wall mounting, min. |
-30 °C |
| ● vertical wall mounting, max. |
50 °C |
| Operating altitude above sea level |
| ● Installation altitude above sea level, max. |
5,000 m; Restrictions for installation at altitudes > 2,000 m, see technical description |
| Accessories |
| Color-coded signs |
| ● for technological clamps |
CC00 to CC09 |
| ● for AUX terminals |
No |
| ● for additional terminals |
No |
| Connection technique |
| Terminals |
| ● Terminal type |
Push-in terminal |
| ● System-integrated screen clamp |
Yes; option |
| ● Cross-section of connection socket min. |
0.14 mm²; AWG 26 |
| ● Cross-section of connection socket max. |
2.5 mm²; AWG 14 |
| ● Number of technological clamps to the peripheral module |
16 |
| ● Number of terminals to the AUX bus |
0 |
| ● Number of additional terminals |
0 |
| ● Number of terminals with connection to bus P1 and P2 |
2 |
| Dimensions |
| Width |
15 mm |
| Height |
117 mm |
| Depth |
35 mm |
| Masses |
| Weight, approx. |
40 g |
|
| eClass |
14 |
27-24-26-03 |
| eClass |
12 |
27-24-26-03 |
| eClass |
9.1 |
27-24-26-03 |
| eClass |
9 |
27-24-26-03 |
| eClass |
8 |
27-24-26-03 |
| eClass |
7.1 |
27-24-26-03 |
| eClass |
6 |
27-24-26-03 |
| ETIM |
10 |
EC001598 |
| ETIM |
9 |
EC001598 |
| ETIM |
8 |
EC001598 |
| ETIM |
7 |
EC001598 |
| IDEA |
4 |
3560 |
| UNSPSC |
15 |
32-15-17-04 |
|
