Technical specifications
| Manufacturer | Allen Bradley |
|---|---|
| Category | PLCs |
| Product Line | ControlLogix |

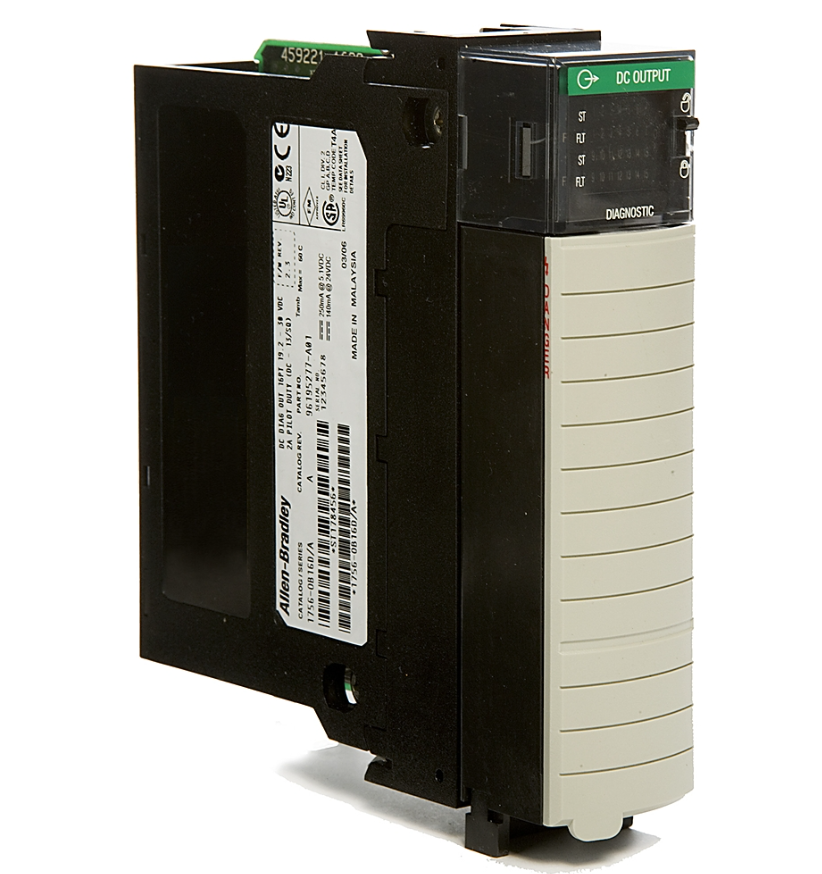

| Part Number | 1756-OB16D |
| UPC | 612598164530 |
| Weight | 0.56 lbs (0.26 kg) |
| Module Type | Diagnostic DC Output Module |
| Outputs | 16-Point Diagnostic |
| Voltage | 24 Volts DC Source |
| Operating Voltage Range | 19.2-30 Volts DC |
| Maximum Output Current Rating-Point | 2 Amps at |
| Maximum Output Current Rating-Module | 8 Amps at 30 degrees Celsius and 4 Amps at 60 degrees Celsius |
| Power Dissipation (Max) | 3.3 Watts at 60 Celsius |
| Backplane Current at 5 Volts | 250 milliamps |
| Backplane Current at 24 Volts | 140 milliamps |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Isolation Voltage | 50 Volts Continuous |
| Enclosure | None |
