5094-OF8 Analog 8 Output AB

Name: 5094-OF8 Analog 8 Output AB - ZEON Solution
Price: 427595 PKR
Availability: InStock

₨ 427,595

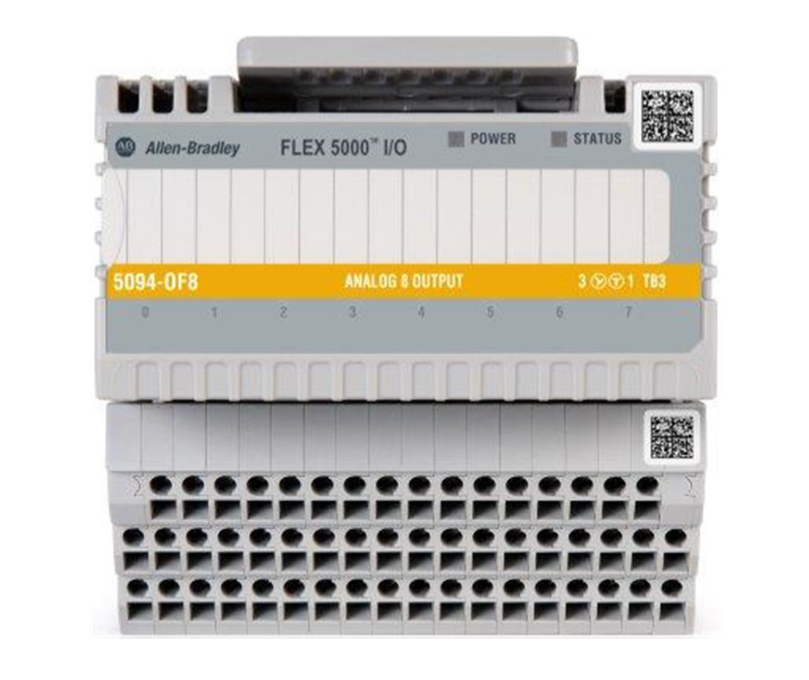

Allen-Bradley 5094-OF8 Analog Standard Output Safety Module, 8 Outputs, 16 bit

The 5094-OF8 module is an output module that has been manufactured by Allen-Bradley in the Flex 5000 series. It is an analog type of output module with 8 channels. The 5094-OF8 analog output module can operate with current or voltage power. It supports output current ranges of 0 to 20 milliamps or 4 to 20 milliamps and output voltage ranges of 0 to 5 Volts, 0 to 10 Volts, or -10 to +10 Volts.

Category: PLC & CONTROLLERS Tags: 5094-OF8, AB, Analog 8 Output Brand: Allen Bradley

Description
Reviews (0)

Description

Technical specifications

Manufacturer	Allen Bradley
Category	PLCs
Product Line	FLEX 5000
Part Number	5094-OF8
UPC	889508097633
Weight	0.31 lbs (0.14 kg)
Module Type	Analog Current/Voltage Output Module
Outputs	8 single-ended
Output range, voltage	±10V0…10V0…5V
Output range, current	0…20 mA4…20 mA
Resolution	16 bits across ±10.5V – 320 μV/bit16 bits across 10.5V – 160 μV/bit16 bits across 5V – 80 μV/bit16 bits across 21 mA – 320 nA/bit
Drive capability	Voltage – 1000 Ω minCurrent – 500 Ω max
Capacitive load, max (voltage mode only)	1 μF
Inductive load, max (current mode only)	1 mH
Open circuit detection	Current mode only
Short circuit detection	Voltage mode only – output electronically limited to 16 mA or less
Data format	IEEE 75432-bit floating point
Module conversion method	R-Ladder DAC, monotonicity with no missing codes
