Technical Data
| Range | Actassi |
|---|---|

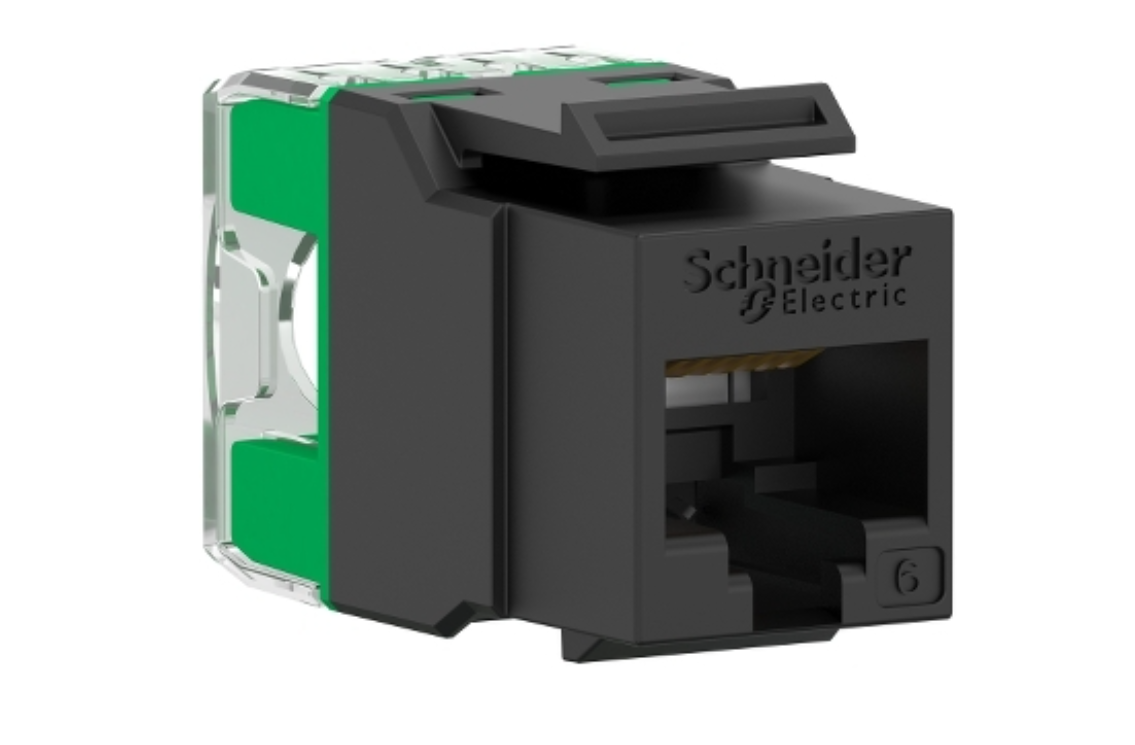

| Product name | Actassi S-110 |
| product type | RJ45 connector |
| Device presentation | Two piece design |
| Colour tint | Connector housing: black (ABS + PC) Top cover: transparent (PC) IDC cover: green (PC) |
| Wiring Colour configuration | TIA-568A/B |
| Quantity per set | Set of 1 |
| [In] rated current | 1.5 A at 25 °C |
|---|---|
| voltage proof | 1000 V AC/DC peak, between contacts |
| Contact resistance | 20 mOhm |
| Insulation resistance | Initial insulation resistance: > 500 MOhm at 100 V DC |
| AWG gauge | AWG 24…AWG 23 |
| durability | 750 cycles |
| contact pins | 8 pins of copper alloy and gold plated conforming to IEC 60603-7 |
| Tool type | Punch down tool Quick termination tool |
| Cable outer diameter | 0.9…1.4 mm |
| compatible LAN cable types | UTP |
| Communication network category | 6 |
| supported applications | 1000BASE-T |
| protocols | PoE+ (Power over Ethernet) PoE+ 30W (Power over Ethernet Plus) PoE 15W (Power over Ethernet) 4PPoE 100W (Power over Ethernet) |
| Connections – terminals | Insulation displacement contact |
| Transmission frequency | 1…250 MHz |
| Type of footprint | S-110 keystone |
| Height | 0.022 m 22 mm |
| Length | 0.04 m 36 mm |
| Width | 16 mm 0.016 m |
| operational temperature range | -10…60 °C -10…60 °C |
|---|---|
| Ambient air temperature for storage | -40…70 °C -40…70 °C |
| climatic category | 40/070/21 (21 days) |
| Flame retardance | UL94-V0 conforming to UL listed |
| Product certifications | UL listed |
| Standards | ANSI/TIA-568-C.2 IEC 60603-7-4 ISO/IEC 11801:2011 Ed.2.2 AS/NZS 3080:2003 UL 1863 |
