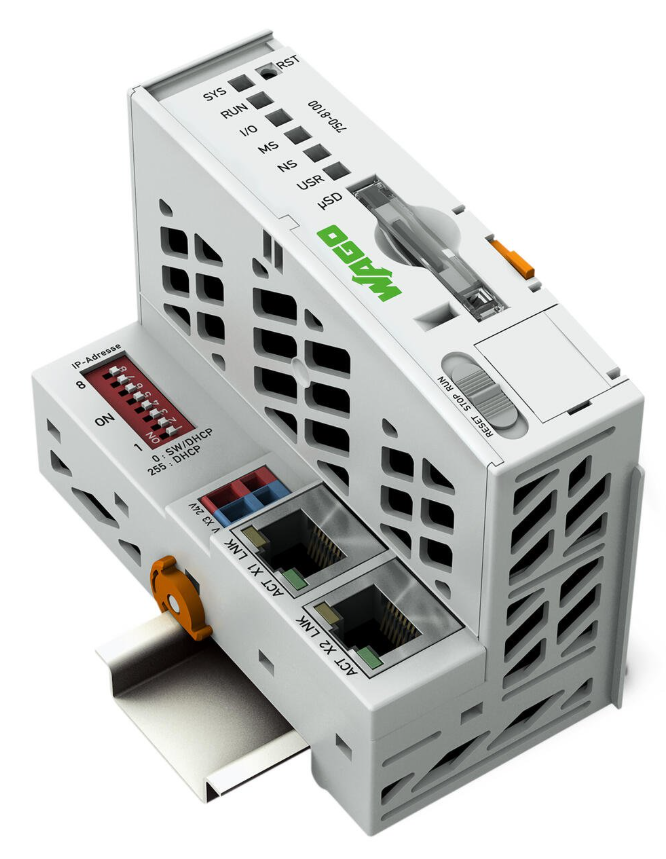

Name: PLC Controller PFC100; 2 x ETHERNET; ECO - ZEON Solution
Price: 483360 PKR
Availability: InStock

PLC Controller PFC100; 2 x ETHERNET; ECO

₨ 483,360

Controller PFC100 2 x ETHERNET ECO
Programmable via e COCKPIT
Direct connection of WAGO’s I/O modules
2 x ETHERNET (configurable)
Linux 3.18 operating system with PREEMPT
RT patch- Configuration via e COCKPIT or Web-Based Management
interface- Maintenance-free
Make WAGO Germany

Description

Technical Data

Communications	Modbus (TCP, UDP) ETHERNET EtherNet/IP^TM Adapter (slave), library for e!RUNTIME MQTT
ETHERNET protocols	DHCP DNS NTP FTP FTPS SNMP HTTP HTTPS SSH
Visualization	Web-Visu
Operating system	Real-time Linux 3.18 (with PREEMPT_RT patch)
CPU	Cortex A8; 600 MHz
Programming languages per IEC 61131-3	Instruction List (IL) Ladder Diagram (LD) Function Block Diagram (FBD) Continuous Function Chart (CFC) Structured Text (ST) Sequential Function Chart (SFC)
Programming environment	e!COCKPIT (based on CODESYS V3)
Configuration options	e!COCKPIT WAGO-I/O-CHECK Web-Based Management
Transmission rate	ETHERNET: 10/100 Mbit/s
Transmission medium (communication/fieldbus)	ETHERNET: Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
Main memory (RAM)	256MB
Internal memory (flash)	256MB
Non-volatile hardware memory	64kbyte
Program memory	10 MB (Program and data memory (dynamically distributed))
Data memory	10 MB Program and data memory (dynamically distributed)
Non-volatile software memory	64.kbyte
Type of memory card	microSD up to 32 GB (all guaranteed properties only valid with WAGO’s memory card)
Memory card slot	Push-push mechanism; Cover lid (sealable)
Number of modules per node (max.)	250
Number of modules without a bus extension (max.)	64
Input and output process image (internal) max.	1000 words/1000 words
Input and output process image (Modbus®) max.	CODESYS V3: 32000 words/32000 words
Drift – system clock (25 °C)	20ppm
RTC backup time (25 °C)	7Tage
Indicators	LED (SYS, RUN, I/O, USR) red/green/orange: Status system, program, local data bus, status programmable by user (can be used via CODESYS library)
Supply voltage (system)	24 VDC (-25 … +30 %); via pluggable connector
Input current (typ.) at nominal load (24 V)	300mA
Total current (system supply)	700mA
Isolation	500 V system/field
