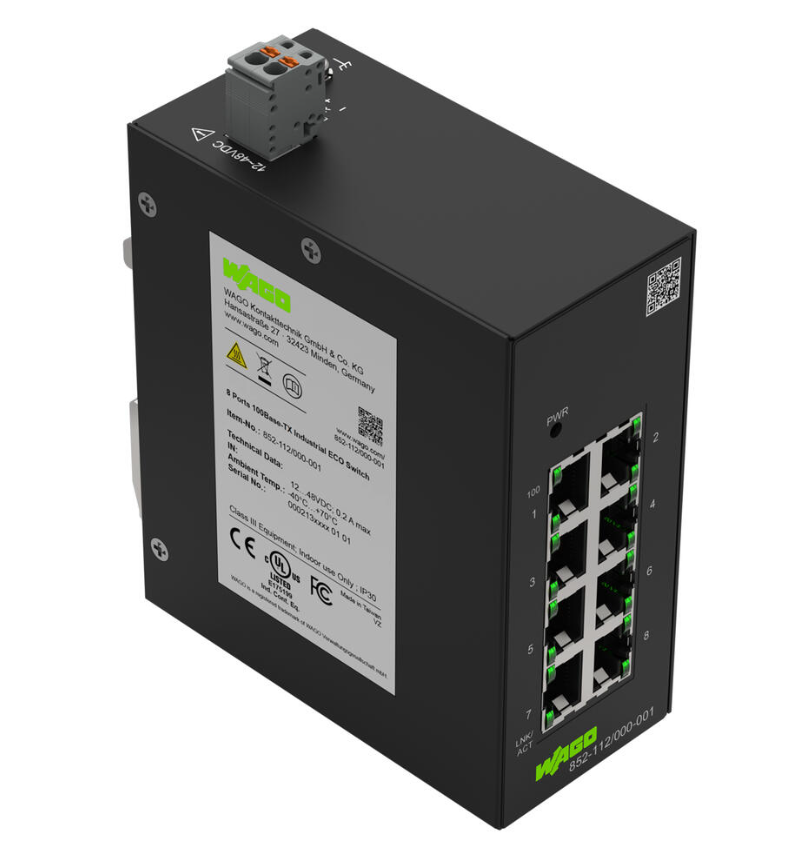

Description
Technical Data
| Switching mode | Store-and-forward; non-blocking |
| Number of 100 Mbps ports | 8 |
| Communication standards | IEEE 802.3i 10BASE-T IEEE 802.3 Autonegotiation IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control |
| MAC table (size) | 1000 addresses |
| Jumbo frame size | 1552.Byte |
| Supply voltage | 12 … 48 VDC |
| Power consumption (max.) | 2W |
| Current consumption (max.) | 200mA |
| Transmission rate | Copper cable: 10/100 Mbit/s |
| Transmission medium (communication/fieldbus) | Copper cable: Copper cable, Cat 5e or better, 100 m maximum cable length |
| Topology | Star |
| Packet throughput | 148,800pkt/s |
| Indicators | Device: LED (PWR) green: Power supply; per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT ports 1 … 8 |
