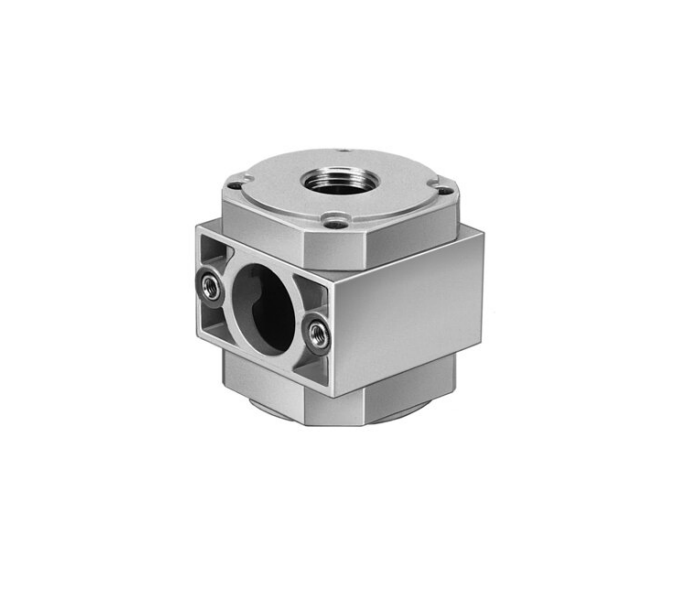

Festo FRM-1/4-D-MINI (164950) Branching Module

Description

Technical Data

• Mounting positionoptional
• DesignBranching module
• Symbol00991510
• Operating pressure0 MPa … 1.6 MPa
• Operating pressure0 bar … 16 bar
• Standard nominal flow rate in main flow direction 1->23300 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Inert gases
• Corrosion resistance class CRC2 – Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-10 °C … 60 °C
• Air purity class at outputCompressed air to ISO 8573-1:2010 [7:-:-] Inert gases
• Media temperature-10 °C … 60 °C
• Ambient temperature-10 °C … 60 °C
• Product weight127 g
• Pneumatic connection, port 3G1/4
• Pneumatic connection, port 4G1/4
• Note on materialsRoHS-compliant
• Material housingDie-cast zinc
