Product details
| Gross weight | 14.056 Kilogram | ||
| Net weight | 13.44 Kilogram | ||
| Volume | 52.36 Liter | ||
| EAN | 5715253080000 |
| Product View (Switch) | GLBL | Global (Standard) | |

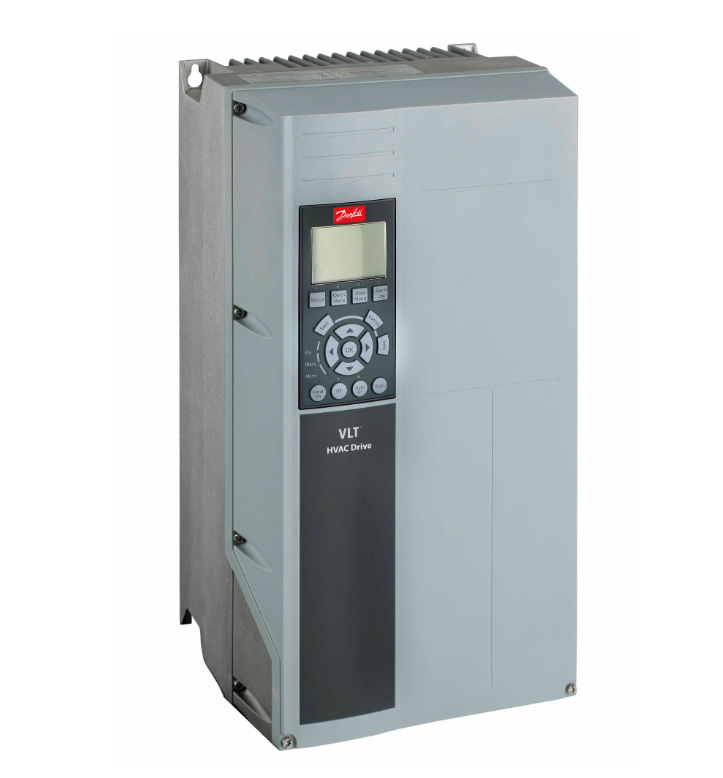

| Product Group | FC- | VLT® AQUA Drive FC- | |
| Series | 202 | 202 | |
| Power Rating | P2K2 | (P2K2) 2.2 KW / 3.0 HP | |
| Phase | T | Three phase | |
| Mains Voltage | 4 | 380 – 480 VAC | |
| Enclosure | P55 | IP55 / Type12 Backplate | |
| RFI Filter | H1 | (H1) RFI Class A1/B (C1) | |
| Brake – Safe Stop | T | Safe Stop | |
| LCP | G | Graphical Loc. Cont. Panel | |
| Coating PCB | C | Coated PCB | |
| Mains Option | X | No Mains Option | |
| Adaptation A | X | Standard Cable Entries | |
| Adaptation B | X | No adaptation | |
| Software Release | SXXX | Latest release std. SW. | |
| Software Language Pack | X | Standard Language Pack | |
| A Option | AL | PROFINET MCA 120 | |
| B Option | BK | MCB-101 General purp. I/O | |
| C0 Option MCO | CX | No C0 option | |
| C1 Option | R | MCB-113 Ext. Relay Card | |
| C Option Software | XX | No software option | |
| D Option | D0 | MCB-107 24V DC backup | |
| Frame Size | A5 | A5 | |
| Typecode Part 1 | FC-202P2K2T4P55H1TGC | ||
| Typecode Part 2 | XXXSXXXXALBKCXRXXD0 | ||
| Product Catalog | NO_VIEW | NO VIEW | |
| Power 150% (HO) [KW] | 2.2 | 2.2 | |
| Power 110% (NO) [KW] | 2.2 | 2.2 | |
| Height [mm] | 420,0 | 420,0 | |
| Width w/ no C options [mm] | 242,0 | 242,0 | |
| Depth [mm] | 200,0 | 200,0 | |
| Depth with Option A/B [mm] | 200,0 | 200,0 | |
| kVA | 3.88 | 3.88 | |
| Power Loss NO [W] | 88 | 88 | |
| Power Loss NO [W] | 88 | 88 | |
| Power Loss HO [W] | 88 | 88 | |
| Power Loss HO [W] | 88 | 88 | |
| Continuous Current (NO) [A] | 5.6 | 5.6 | |
| Intermittent Current (NO) [A] | 6.16 | 6.16 | |
| Continuous Current (NO) [A] | 4.8 | 4.8 | |
| Intermittent Current (NO) [A] | 5.28 | 5.28 | |
| Continuous Current (HO) [A] | 5.6 | 5.6 | |
| Intermittent Current (HO) [A] | 8.4 | 8.4 | |
| Continuous Current (HO) [A] | 4.8 | 4.8 | |
| Intermittent Current (HO) [A] | 7.2 | 7.2 | |
| Calculated Gross Weight [kg] | 14.056 | ||
| Calculated Net Weight [kg] | 13.44 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | 3A999.a | 3A999.a | |
| Plant from Orderline | E102 | E102 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor | |
| Allowed Plants | B901 E101 E102 E103 E104 E105 |
(B901) Graasten Manufactoring (E101) Dandenong Distribution (E102) Derrimut Distribution (E103) Sydney Distribution (E104) Brisbane Distribution (E105) Perth Distribution |
|
| Modelcode01 | FC-202P2K2T4P55H1TGC | ||
| Modelcode02 | XXXSXXXXALBKCXRXXD0 |
