A9F55120 MCB MINIATURE CIRCUIT BREAKER RCD 1P-20A-SCHNEIDER

Name: A9F55120 MCB MINIATURE CIRCUIT BREAKER RCD 1P-20A-SCHNEIDER - ZEON Solution
Price: 23500 PKR
Availability: InStock

₨ 23,500

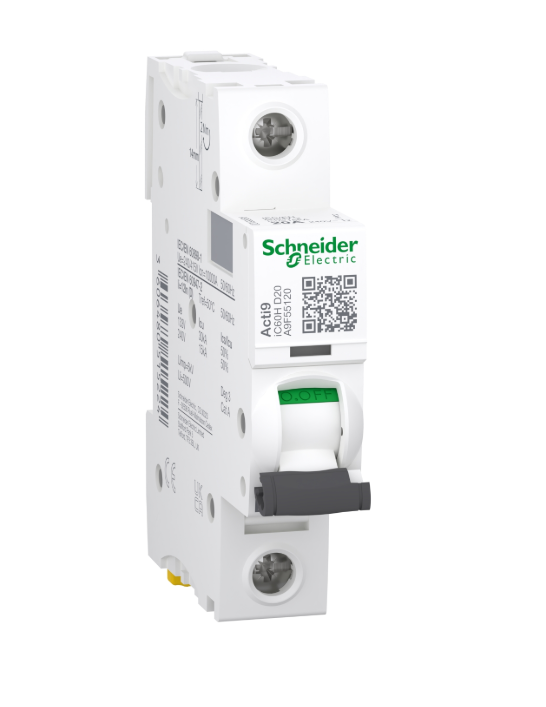

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 1P circuit breaker with 1 protected pole, 20A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 15kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 240VAC conforming to EN/IEC 60898-1 standard.

Category: CIRCUIT BREAKERS Tags: 1P, 20A, A9F55120, MCB, MINIATURE CIRCUIT BREAKER, RCD, Schneider Brand: Schneider

Description
Reviews (0)

Description

Technical Data

Main
Range	Acti9
Product name	Disbo iC60
Product or component type	Miniature circuit-breaker
Device short name	iC60H
Poles description	1P
Number of protected poles	1
[In] rated current	20 A
Network type	AC/DC
Trip unit technology	Thermal-magnetic
Curve code	D
Breaking capacity	42 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 12…60 V DC conforming to EN/IEC 60947-2 15 kA Icu at 60…72 V DC conforming to EN/IEC 60947-2 10000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1
Utilisation category	Category A conforming to EN/IEC 60947-2
