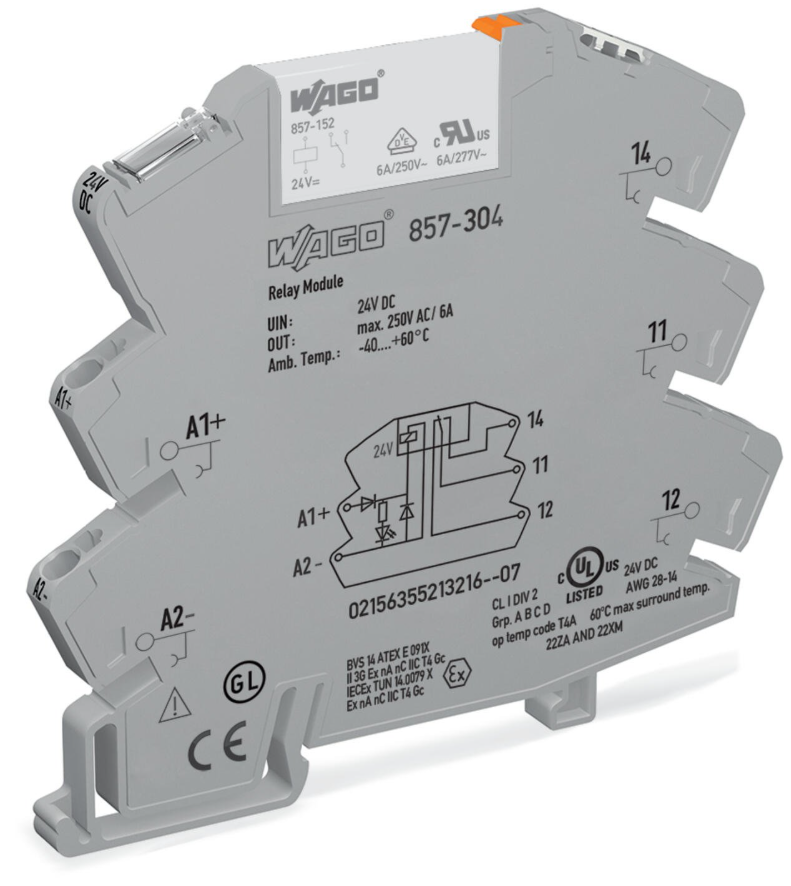

Description
Technical specifications
Control circuit
| Nominal input voltage UN | 24 VDC |
| Input voltage range | -15 … +20 % |
| Nominal input current at UN | 10 mA |
Load circuit
| Number of changeover/switchover contacts | 1 |
| Contact material (relay) | AgSnO2 |
| Limiting continuous current | 6 A |
| Inrush current (resistive) max. | (AC) 20 A / 0.02 s |
| Switching Voltage, Max. | 250 VAC |
| Switching power (resistive) max. | AC 1500 VA; DC (see load limit curve) |
| Switching capacity | AC-15: 3 A / 250 VAC; DC-13: 2 A / 24 VDC |
| Recommended minimum load | 10 V / 10 mA; 24 V / 1 mA |
| Pull-in time (typ.) | 6ms |
| Drop-out time (typ.) | 6ms |
| Bounce time (typ.) | 3.5ms |
| Electrical life (NO; resistive load; 23 °C) | 50 x 10³ switching operations |
| Mechanical life | 5 x 10⁶ switching operations |
| Switching frequency with/without load (max.) | 6 min-1 / 180 min-1 |
Signaling
| Status indicator | Yellow LED |
